MEGA Rocket Build Kit with 3 x 18mm engine cluster or 1 x 24mm single motor mount

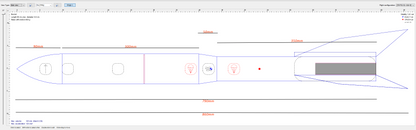

This is a kit designed for the UKROC 2025 competition. A suggested design has been included below, along with measurements. This kit contains everything you need, except the rocket motor casing, closure and reload.

If you wish to learn more about the UKROC competition and this years mission and rules or to register a team, please take a look at the website:
https://www.ukroc.com/

This kit is designed to work with either a 3 x 18mm rocket motor cluster system or with 24mm Ceseroni rocket motor casings. You need a metal casing (1 grain, 2 grain or 3 grain), a metal closure and a rocket motor reload of your choice ( we recommend the 3 grain 75F51-12A with an adjustable ejection delay). We sell these products however if you buy this kit you will have access to cheaper motor reloads and Ceseroni products.
If you are using Klima rocket motors, we recommend using the D9-3 / D9-5 motors.

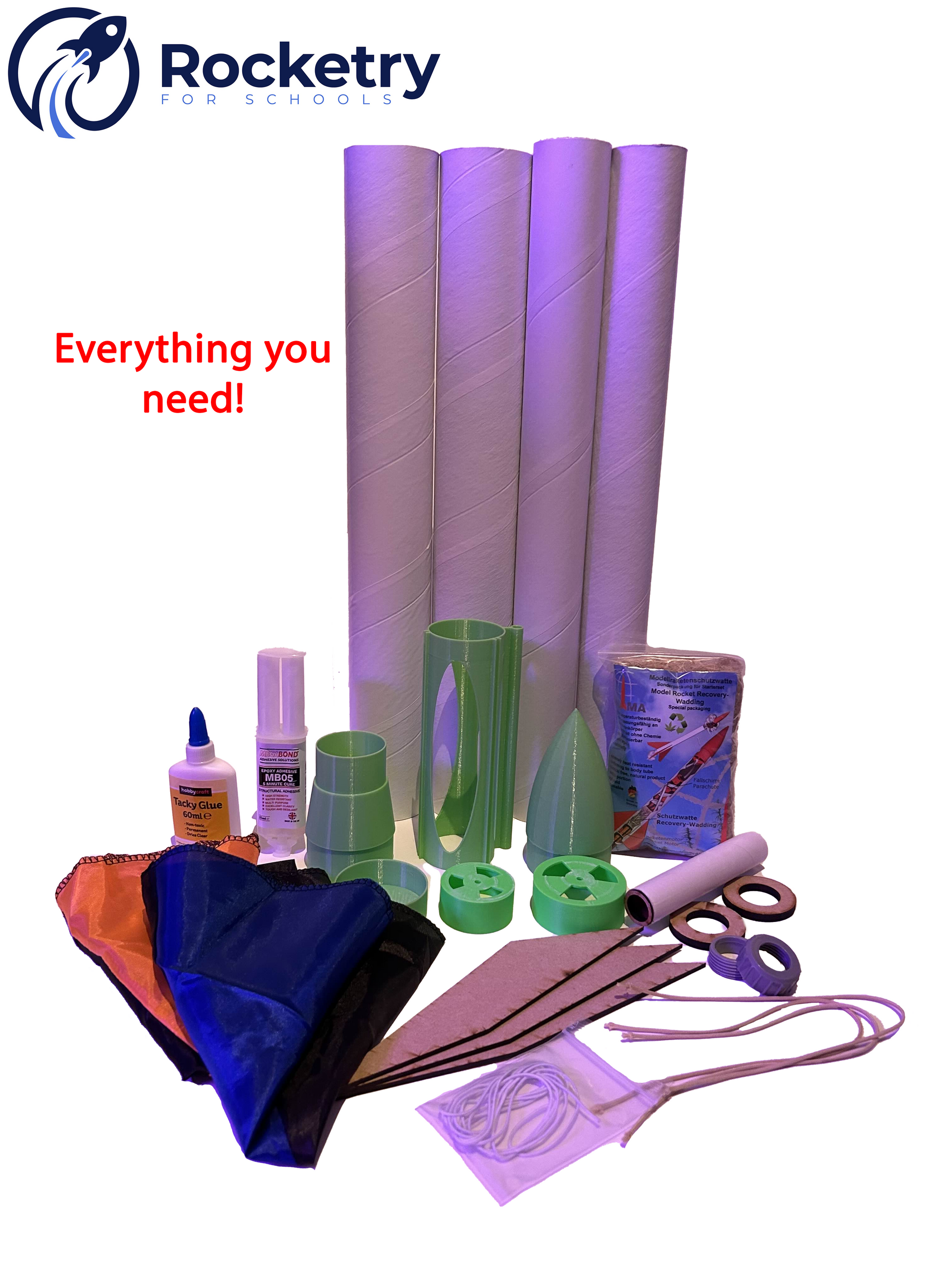

THIS KIT INCLUDES:
2 x 66mm x 500mm Tubing
2 x 52mm x 500mm Tubing
2 x 42cm diameter parachutes
3 x 3mm x 180mm MDF Fins
1 x Fin holder for 52mm Tubing
1 x Transition for 52mm to 66mm Tubing
1 x Nose cone for 66mm Tubing
1 x Bulkhead for 66mm Tubing
1 x Shock cord adapter for 66mm Tubing
1 x Shock cord adapter for 52mm Tubing
1 x 1 metre of Kevlar string
1 x 1.8 metres of elastic shock cord
1 x All purpose PVA tacky glue
1 x Quick setting epoxy resin
1 x Bag of protective wadding
1 x set of motor casing holder which includes the end cap and centring rings to be placed in the middle of the lower 52mm tubing.
